Planning Repeatable Production Sets for Identical Sheet Series
Establish locked grid coordinates, distribute mechanical cutting stress, and optimize multi-sheet batch throughput with calculated margin tolerances.
Engineering Repeatable Layouts for Identical Sheet Series
Transition from one-off cuts to volume production runs. Learn how to establish locked coordinate grids, minimize registration drift, and preserve structural sheet integrity across multi-sheet series.
Master Grid Standardization
Establish a locked Cartesian grid tailored to the optical registration window of your cutter. Eliminating micro-variations between consecutive sheets stabilizes mechanical feed accuracy.
Kerf & Stress Distribution
Repetitive cuts generate localized substrate tension. Distribute inner perimeter pathways first, keeping outer support bridges intact until the final pass to avoid roller tracking slippage.
Batch Tolerance Compensation
Account for blade wear and thermal sheet expansion across 50+ continuous runs. Compare placement, material direction, spacing, and post-cut handling using your actual pieces and sheet boundary.

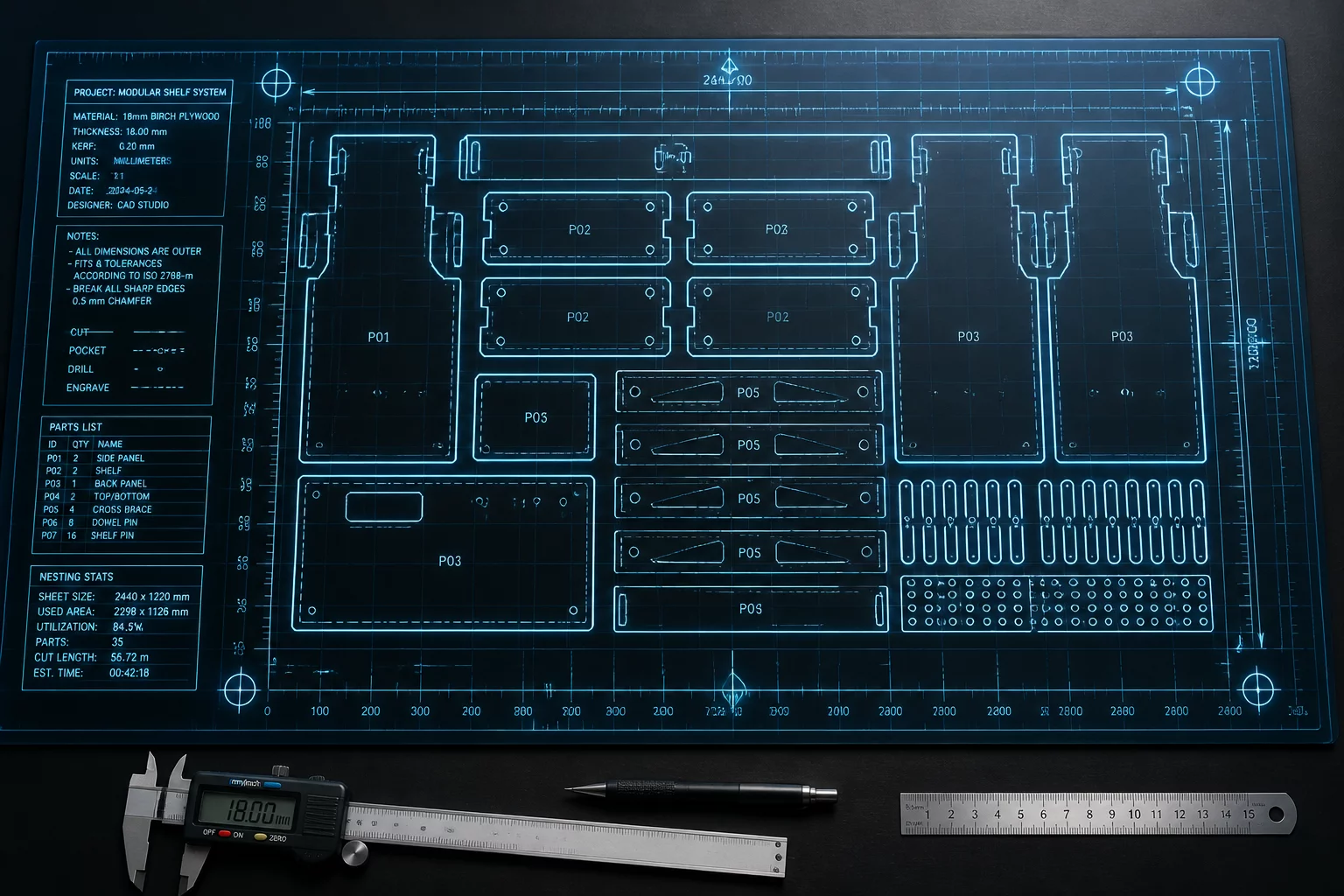

Rectangular Production Set Preview
Planning example for rectangular pieces only. Counts use the entered sheet and piece dimensions, margin, and spacing. Area coverage is geometric coverage, not a measured material-saving claim; verify the layout and orientation in your cutting software.
Calculate exact sheet quantities, total parts yield, and estimated material efficiency when scaling up duplicate cut templates across physical media packs.
Crucial Checkpoints for Continuous Multi-Sheet Cutting Runs
When reproducing large runs, subtle systematic shifts can compound quickly. Standardize these three phases to maintain sub-millimeter precision from sheet 1 through sheet 100.
Consistent Corner Registration
Align every media sheet against a physical right-angle stop on the mat or loading bed before engaging pinch rollers.
Thermal & Adhesion Management
Rotating 2 or 3 cutting mats prevents heat buildup and distributes adhesive tack wear evenly across prolonged sessions.
Periodic Sensor Recalibration
Run a rapid optical calibration test every 20 sheets to verify diode sensitivity against evolving ambient workshop lighting.
